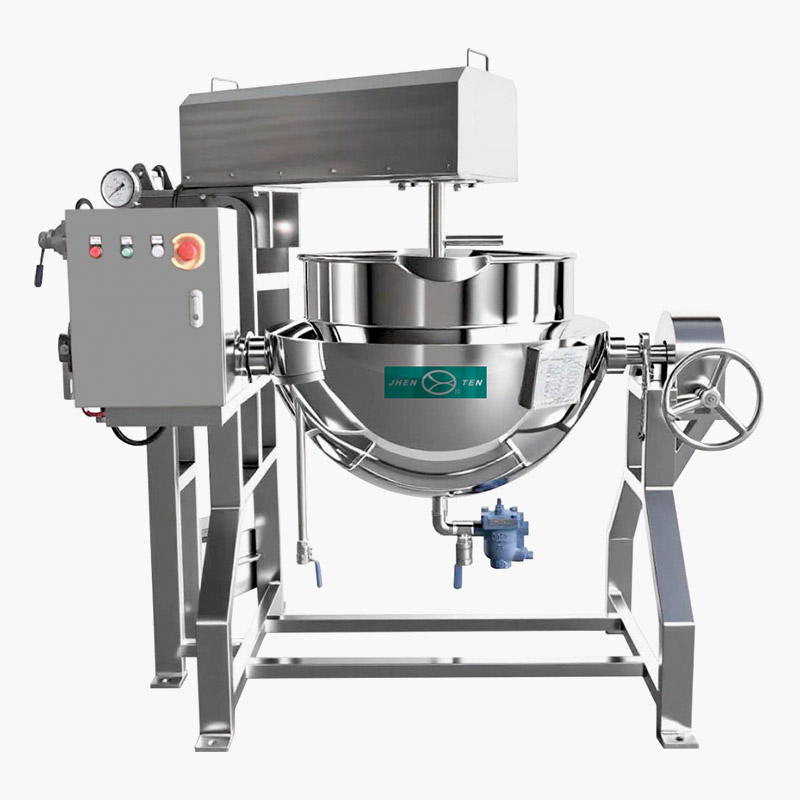

JTRZG Jacketed Steam Kettle

Double-layer spherical pot design. Steam or thermal oil circulates through the jacket for highly efficient and uniform heating.

Optional flanged discharge port for direct material discharge after cooking, saving time and labor.

Seamless arc transitions on the inner wall with mirror polishing, ensuring easy cleaning and compliance with hygiene standards.

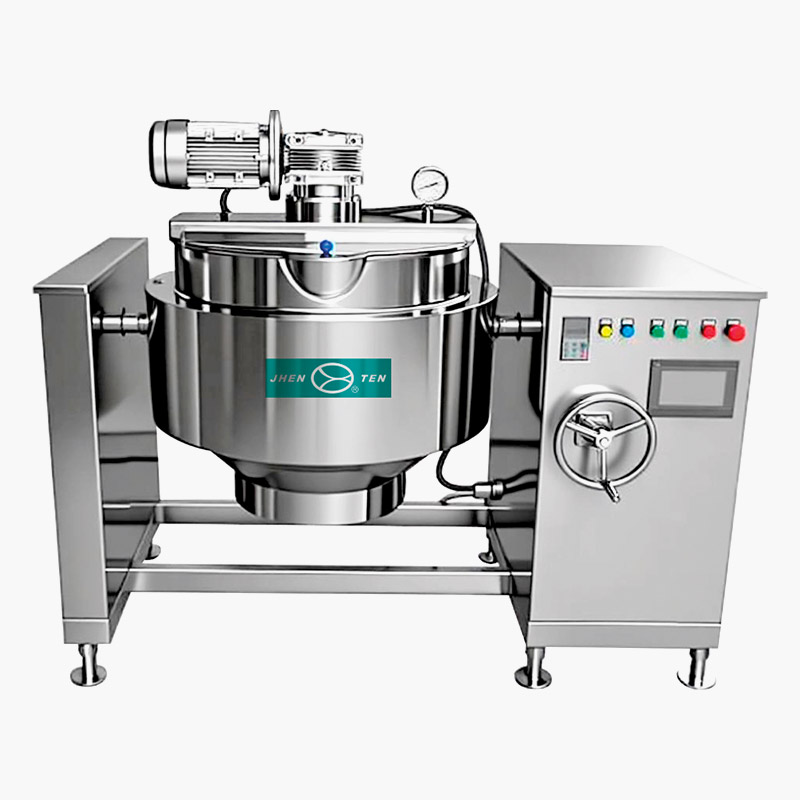

Available in fixed or tiltable configurations. Customizable stirring and emulsifying devices are supported.

Consult Now

Overview

Product Structure

·Double-layer spherical pot design. Steam or thermal oil circulates through the jacket for highly efficient and uniform heating.

·Optional flanged discharge port for direct material discharge after cooking, saving time and labor.

·Seamless arc transitions on the inner wall with mirror polishing, ensuring easy cleaning and compliance with hygiene standards.

·Available in fixed or tiltable configurations. Customizable stirring and emulsifying devices are supported.

Core Advantages

·Efficient Heating: Large heating surface area and high thermal efficiency shorten liquid boiling time, with precise temperature control.

·Flexible Customization: Multiple specifications from 50L to 500L available. Supports design and manufacturing according to specific requirements.

·Premium Materials: 304/316L inner pot with mirror-polished inner surface (Ra ≤ 0.28μm - 0.6μm). Outer surface customizable with polishing, brushing, etc.

·Convenient Connections: Quick-release clamp design for easy operation.

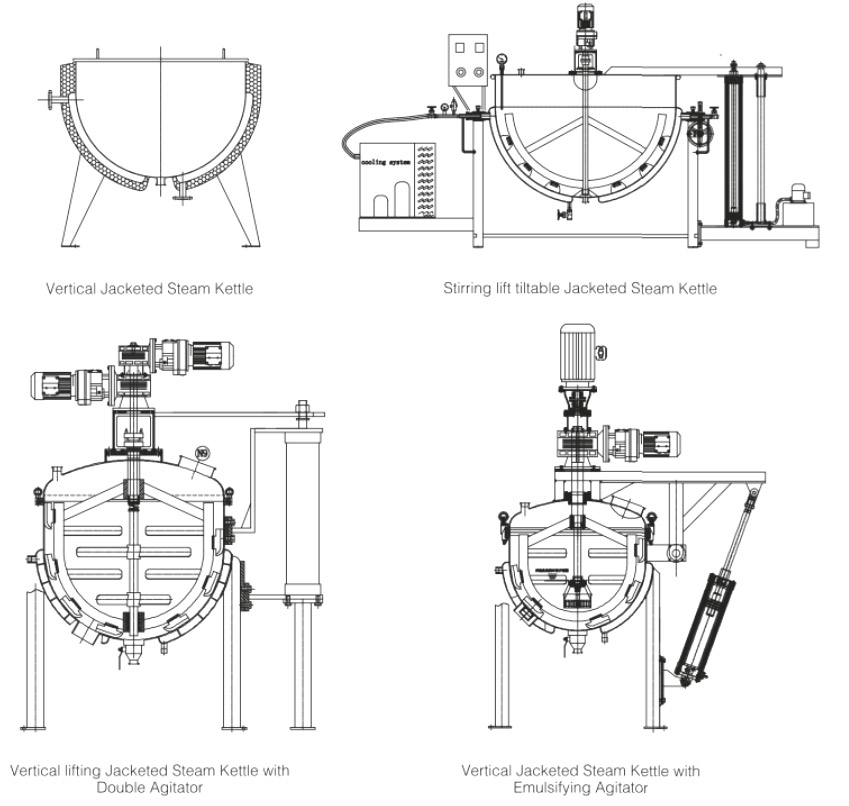

Structure

Technical Parameter

Model		JTRZG-50	JTRZG-100	JTRZG-200	JTRZG-300	JTRZG-400	JTRZG-500
Effective volume (L)		50	100	200	300	400	500
Evaporation (Kg/h)(Rinsing)		30	40	65	75	100	150
Heat-transfer area (m2)		0.40	0.60	1.00	1.44	1.65	1.90
Steam consumption (Kg/h)		33	44	72	110	136	165
Kettle	Diameter	Φ600	Φ700	Φ800	Φ900	Φ1000	Φ1100
Kettle	Kettle depth	450	520	550	630	680	750
Mixing	Power (kW)	0.37	0.37	0.55	0.75	0.75	1.1
Mixing	RPM (r/min)	36 (Can adjust the design according to the customer's usage)
Emulsification	Power (kW)	1.1	1.1	1.5	1.5	1.5	2.2
Emulsification	RPM (r/min)	4P (Can adjust the design according to the customer's usage)
Structure		Fixed(Vertical or horizontal)/tiltable/mixing
