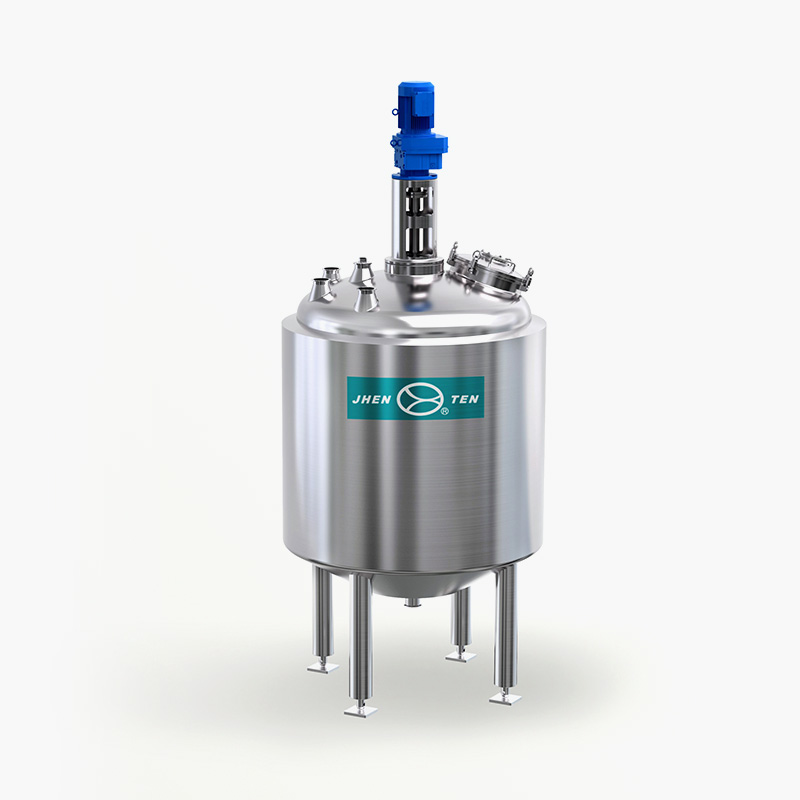

Crystallizing Tank

Consult Now

Overview

Feature

? Volume: 600L~20000L and multiple specification, also can design and manufacture according to customers’ requirement.
? Crystallization can choose curved blade paddle, can increase heat exchange area, increase in thermal efficiency, enhance the crystallization capacity, and material discharging is convenient.
? Crystallizing tank jacket can be bubbled into steam or cold media to make the material under optimum temperature, with high efficiency and convenient operation.
? Crystallizing tank installed 0.2 um hydrophobic ventilation filter, tank can withstand the high temperature steam sterilization disinfection, equipped with health pressure gauge.
? The sealing of agitating shaft adopts sanitary mechanical seal. The mixing motor can use Cycloidal reducer, gearmotor reducer. These items can be selected according to customers’ requirement. (Frequency control is widely used).

Application

Applied for such as pharmaceutical, dairy products, food, chemical, beverage and other industrial materials, mixing temperature and freezing, product crystallization, and so on.

Technical Parameter

Parameters		Model	JTRJJ—600	JTRJJ—1000	JTRJJ—2000	JTRJJ—3000	JTRJJ—4000	JTRJJ—5000
Effective volume：L			600	1000	2000	3000	4000	5000
Barrel	Diameter：mm		Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
Barrel	Height：mm		900	1000	1500	1500	1800	1800
Agitator	Power：kW		1.1	2.2	2.2	3	3	4
Agitator	RPM：r/min		60 （The design can be adjusted according to customer use condition）

JTRJJ—6000	JTRJJ—8000	JTRJJ—10000	JTRJJ—12000	JTRJJ—15000	JTRJJ—20000
6000	8000	10000	12000	15000	20000
Φ1900	Φ2000	Φ2200	Φ2400	Φ2600	Φ2800
2000	2200	2400	2500	2700	3000
4	5.5	7.5	7.5	11	11
60 （The design can be adjusted according to customer use condition）
The above-mentioned data is the standard, for reference only.It can customize according to customer's requirements.
