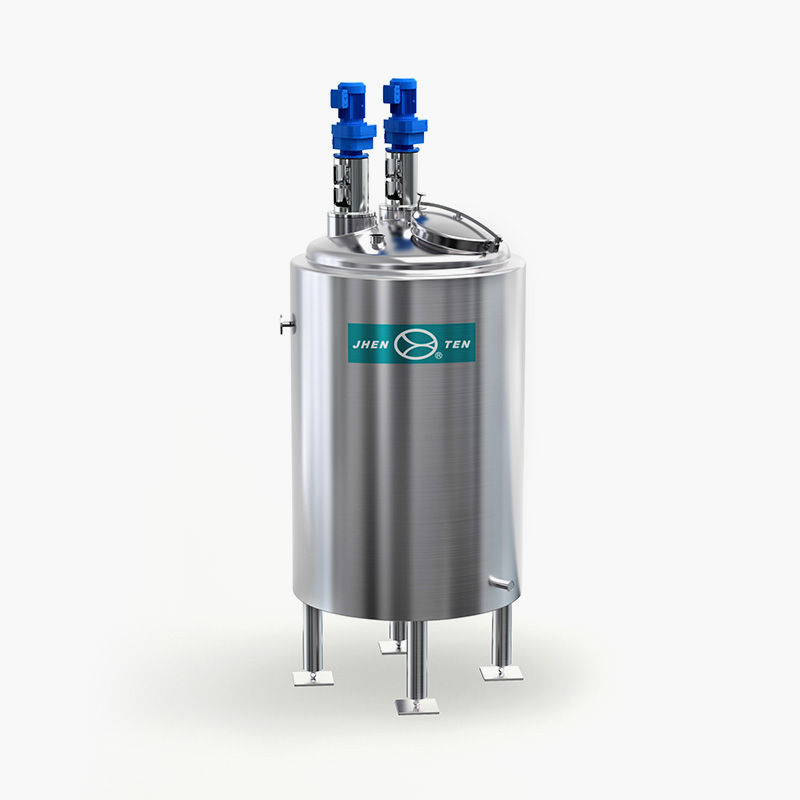

Emulsification Tank

Consult Now

Overview

Feature

? Volume: 600L~20000L and multiple specification, also can design and manufacture according to customers' requirement.
? Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold).
? The connection adopts Tri-clamp, the tanks' inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm～0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers' requirement.
? Agitation adopts top mechanical agitation. Stirring methods(Push type, screw, anchor, etc) can be selected.
? The sealing of agitating shaft and emulsification shaft adopt sanitary mechanical seal. The mixing motor can use Cycloidal reducer, stepless speed reducer. These items can be selected according to customers' requirement. (Frequency control is widely used)Emulsion motor adopts frequency control of motor speed reducer

Application

Suitable for cosmetic, medicine, food, chemical, dyeing, printing ink and other industrial production, especially for high matrix viscosity, solid material content higher material preparation emulsion will be more efficacy.

Technical Parameter

Parameters		Model	JTRRG—600	JTRRG—1000	JTRRG—2000	JTRRG—3000	JTRRG—4000	JTRRG—5000
Effective volume：L			600	1000	2000	3000	4000	5000
Barrel	Diameter：mm		Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
Barrel	Height：mm		900	1000	1500	1500	1800	1800
Emulsification	Motor power ：KW		4	7.5	7.5	11	11	15
Emulsification	Emulsification RPM		4P（The design can be adjusted according to customer's usage）
Mixing	Motor power：KW		1.1	1.5	2.2	2.2	3	4
Mixing	Mixing RPM：r/min		22（The design can be adjusted according to customer's usage）

JTRRG—6000	JTRRG—8000	JTRRG—10000	JTRRG—12000	JTRRG—15000	JTRRG—20000
6000	8000	10000	12000	15000	20000
Φ1900	Φ2000	Φ2200	Φ2400	Φ2600	Φ2800
2000	2200	2400	2500	2700	3000
18.5	22	30	37	45	55
4P（The design can be adjusted according to customer's usage）
4	5.5	5.5	7.5	7.5	9.2
22（The design can be adjusted according to customer's usage）
The above-mentioned data is the standard mixing and emulsification double head type emulsification tank, for reference only. it can customize according to customer's requirements.
